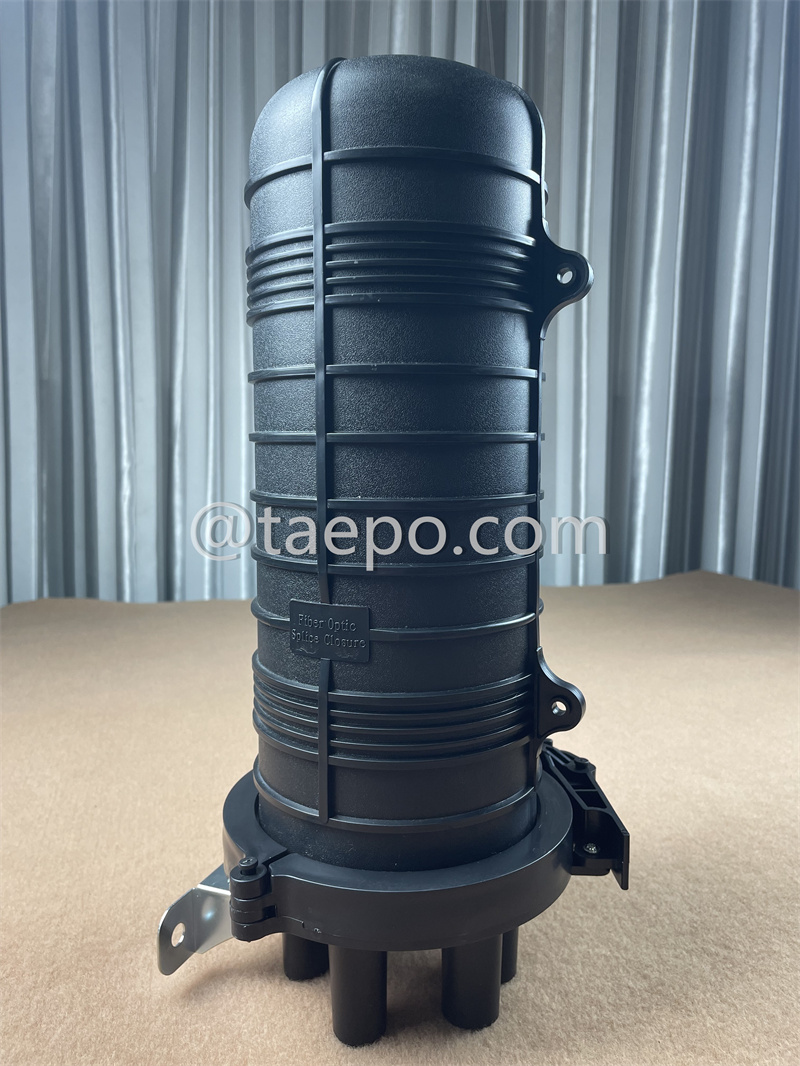

Fiber optic splice closure (FOSC), vertical type, heat shrink sealing, 96 fibers, max 96 bunchy fibers

TAEPO - Your Professional Source for Vertical Fiber Optic Splice Closure(FOSC), Expert Chinese Manufacturing at Its Best !
What does Vertical Fiber Optic Splice Closure do?


    DESCRIPTIONS

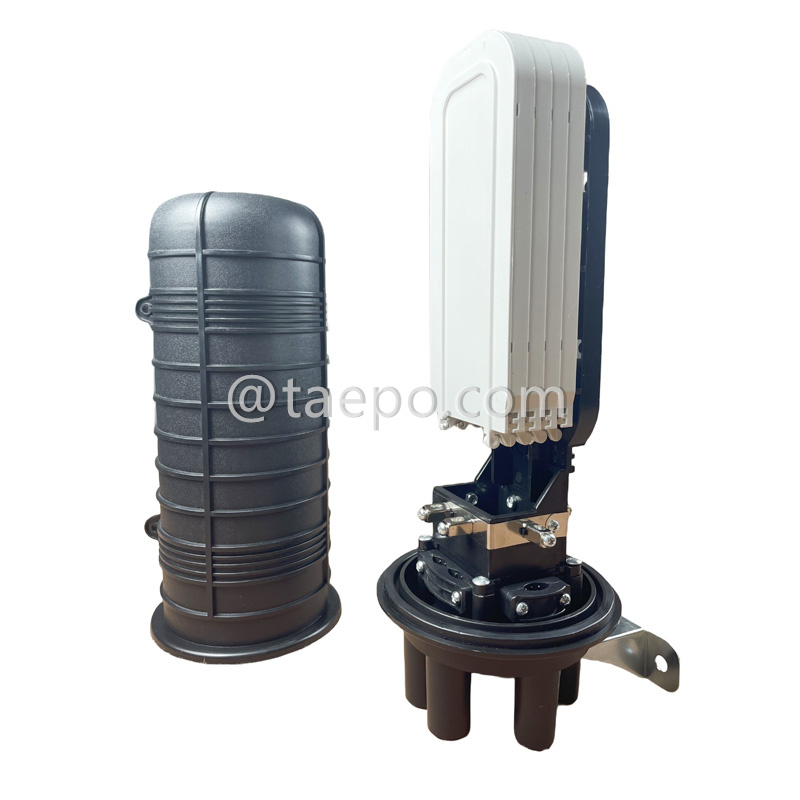

The fiber optic splice closure (TP-3503-96C), vertical type, is a robust enclosure designed to protect and manage fiber optic splices in outdoor and underground environments. It is engineered with a mechanical sealingsystem that provides excellent protection against environmental hazards such as water, dust, and extreme temperatures, without requiring heat shrink or adhesives. This FOSC supports up to 96 fibers, making it ideal for large-capacity fiber optic networks in telecommunications, broadband, and data networks.

Measuring 420mm in height and 135mm in diameter, this closure offers ample space for organized fiber routing and splicing, while maintaining a compact footprint. It is capable of holding up to 96 bunchy fibersfor efficient fiber management. The 4 main ports and 2 additional portsallow for flexible cable configurations and future expansion, making it suitable for various network architectures.

The closure accommodates cables with a maximum diameter of 17mm, providing compatibility with a wide range of fiber optic cables. Its vertical design ensures ease of installation and access, whether used in aerial, underground, or pole-mounted applications, providing durability and long-term performance in even the most demanding conditions.

    MAIN FEATURES

• Mechanical Sealing: Ensures reliable sealing without the need for adhesives or heat, keeping water and dust out.
• Vertical Design: Compact, space-saving design for both underground and aerial installations.
• 96-Fiber Capacity: Accommodates up to 96 fibers, ideal for high-density fiber networks.
• Supports Bunchy Fibers: Designed for up to 96 bunchy fibers, facilitating easy fiber management.
• 4+2 Ports Configuration: Flexible cable entry with 4 main ports and 2 additional ports for expansion.
• Max Cable Diameter of 17mm: Supports a wide range of cable types up to 17mm in diameter.
• Size - 420mm (H) x 135mm (Diameter): Provides ample internal space for fiber splicing while maintaining a compact form.
• Durable Construction: Built to withstand environmental stresses such as water, dust, and mechanical impact.
• UV Resistant: Ideal for long-term outdoor use, protected against degradation from UV exposure.
• Corrosion-Resistant Materials: Ensures longevity even in chemically aggressive environments.
• Impact Resistance: Protects internal splices from damage due to external mechanical forces.
• High-Tensile Strength: Withstands external tensile loads, providing extra protection for the fiber cables.
• Easy Installation: Simplifies fiber splicing and securing operations, reducing labor time.
• Cable Strength Member Fixation: Secures cable strength members, ensuring proper strain relief.
• Compatible with Various Fiber Types: Supports both single-mode and multi-mode fiber optic cables.

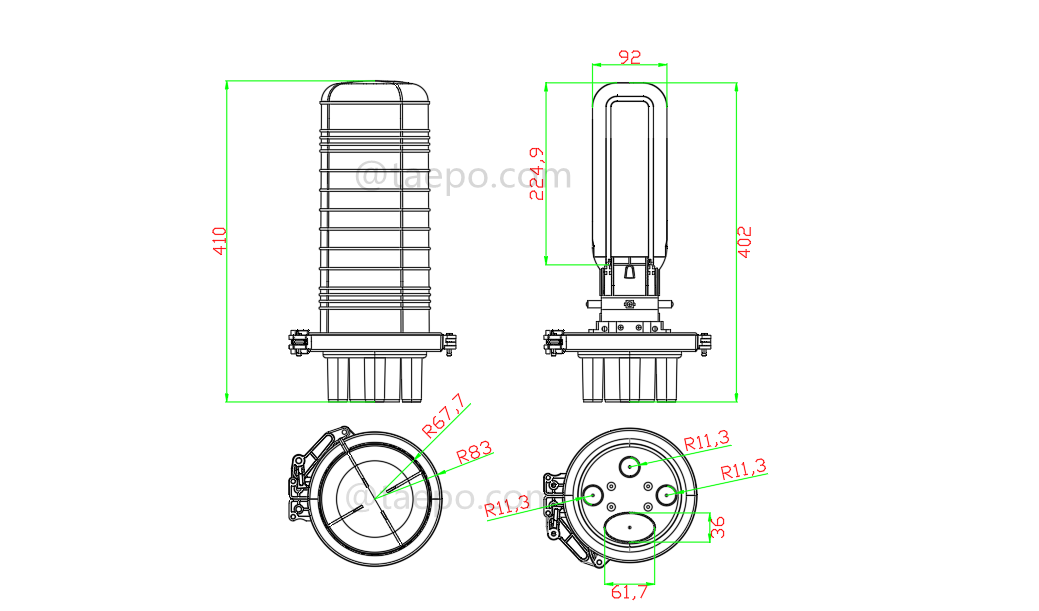

    SCHEMATIC DIAGRAMS

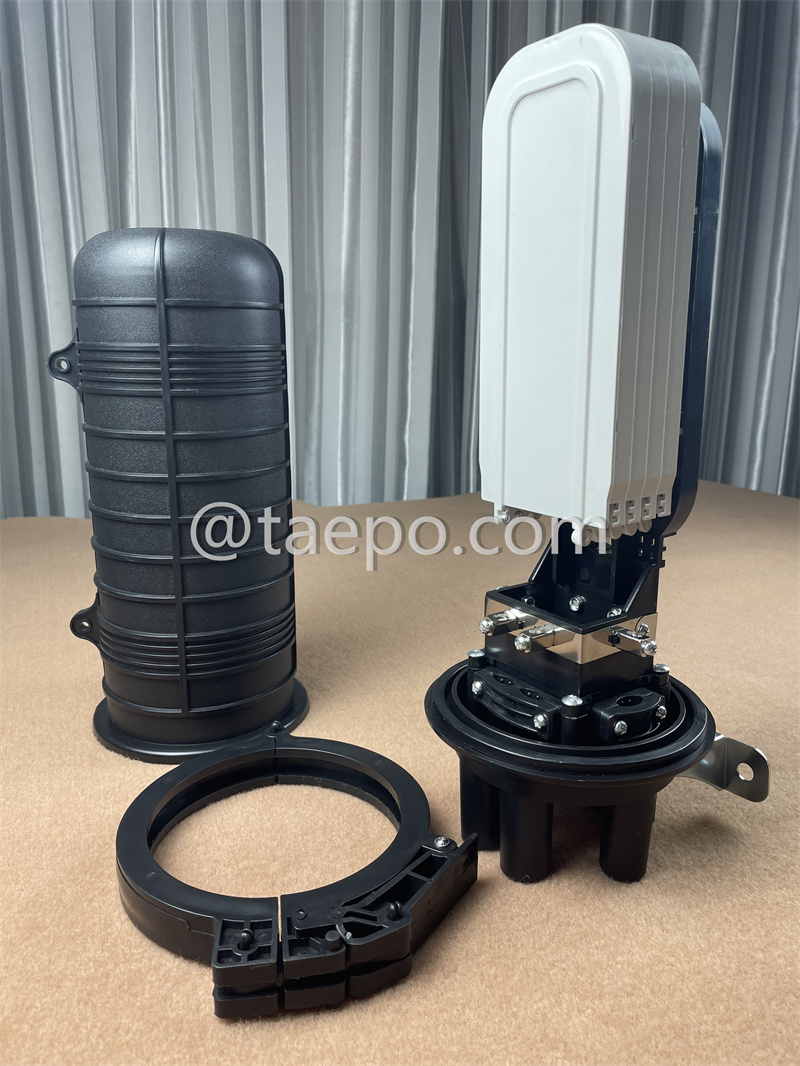

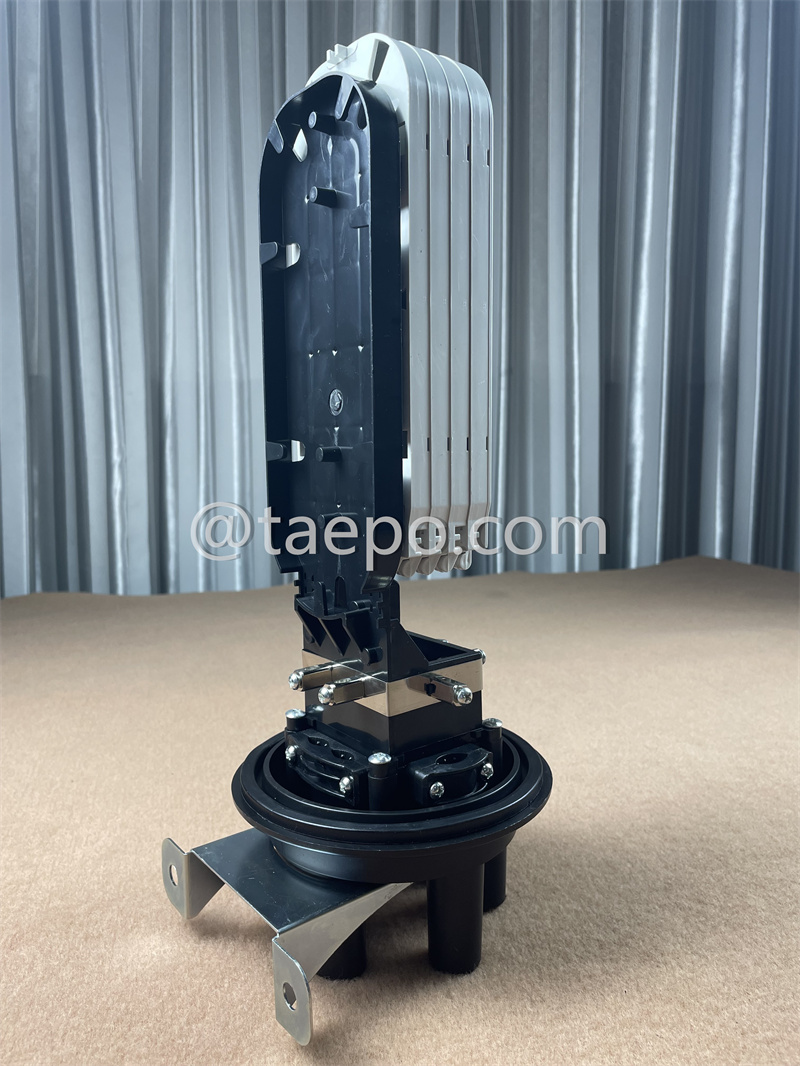

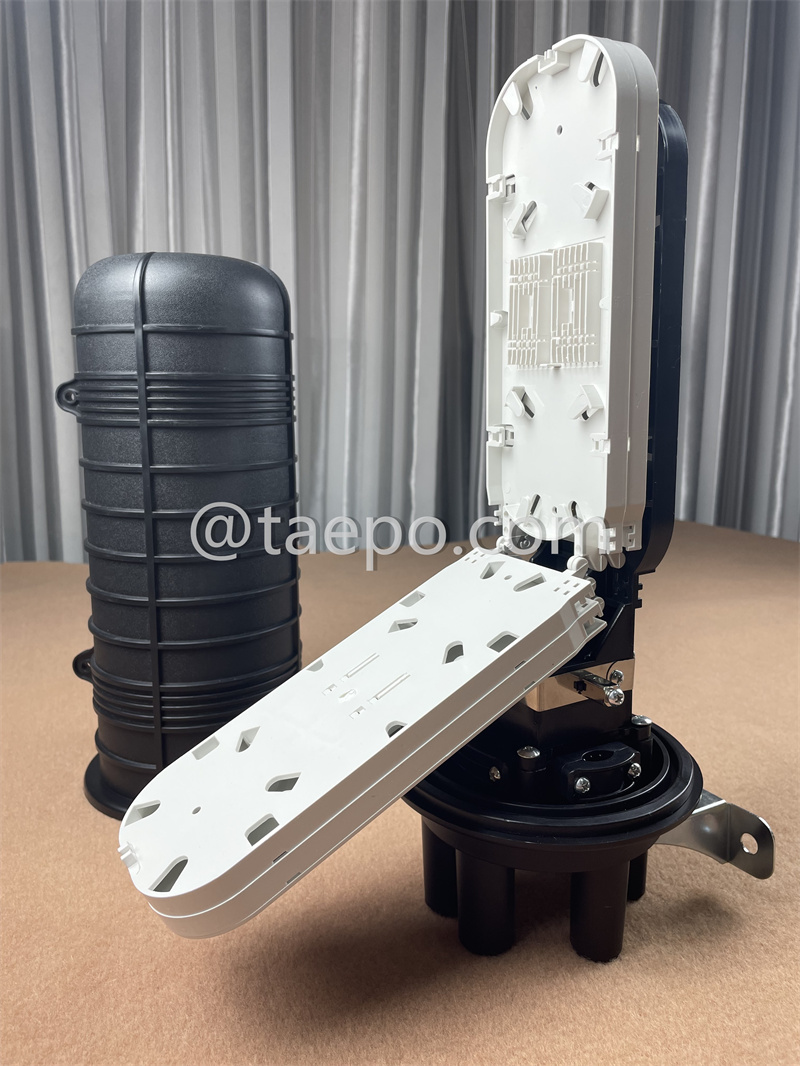

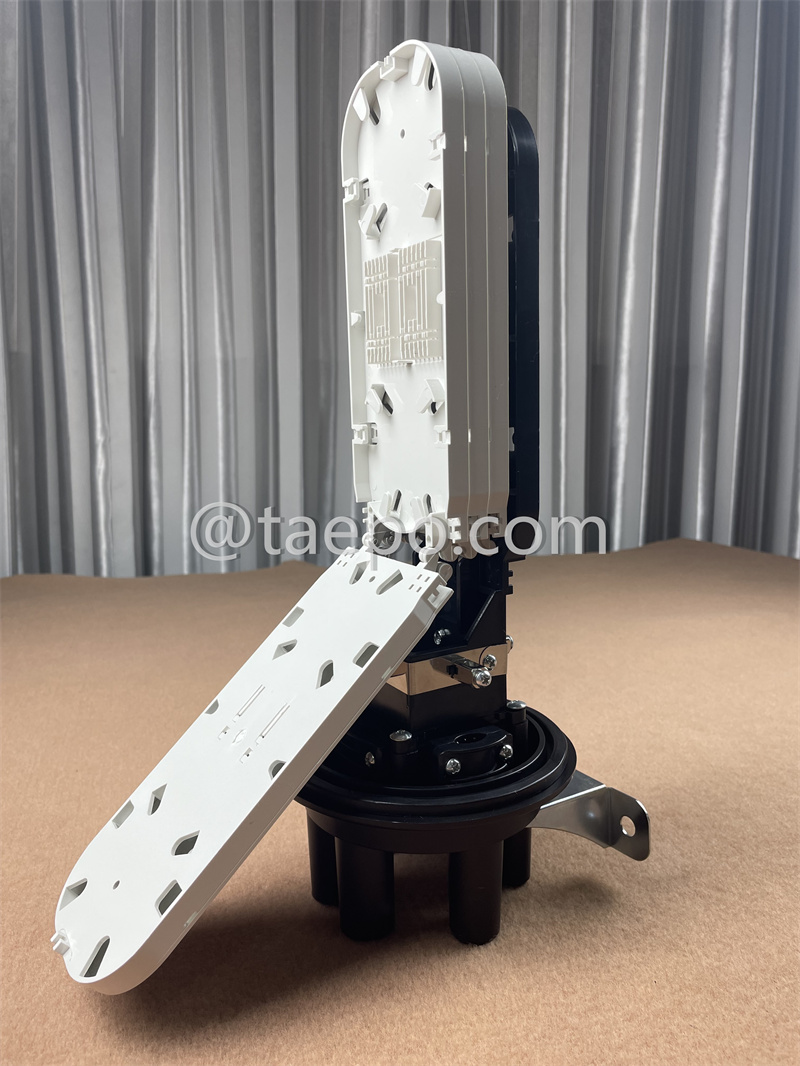

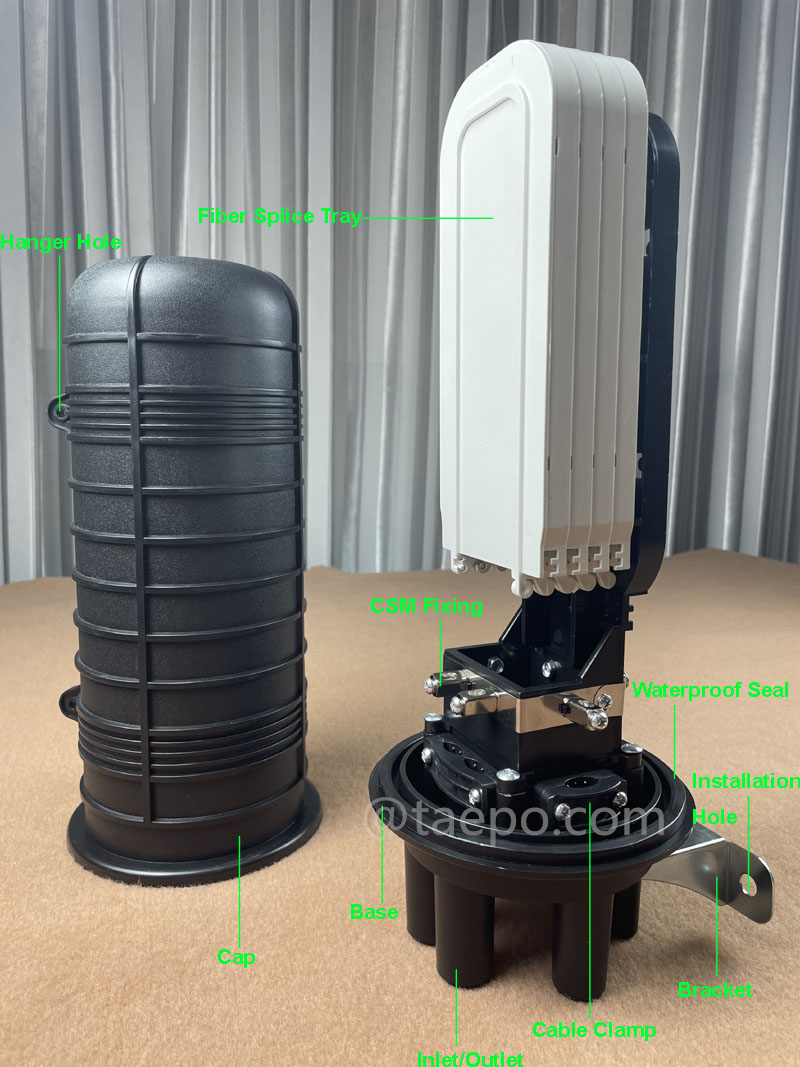

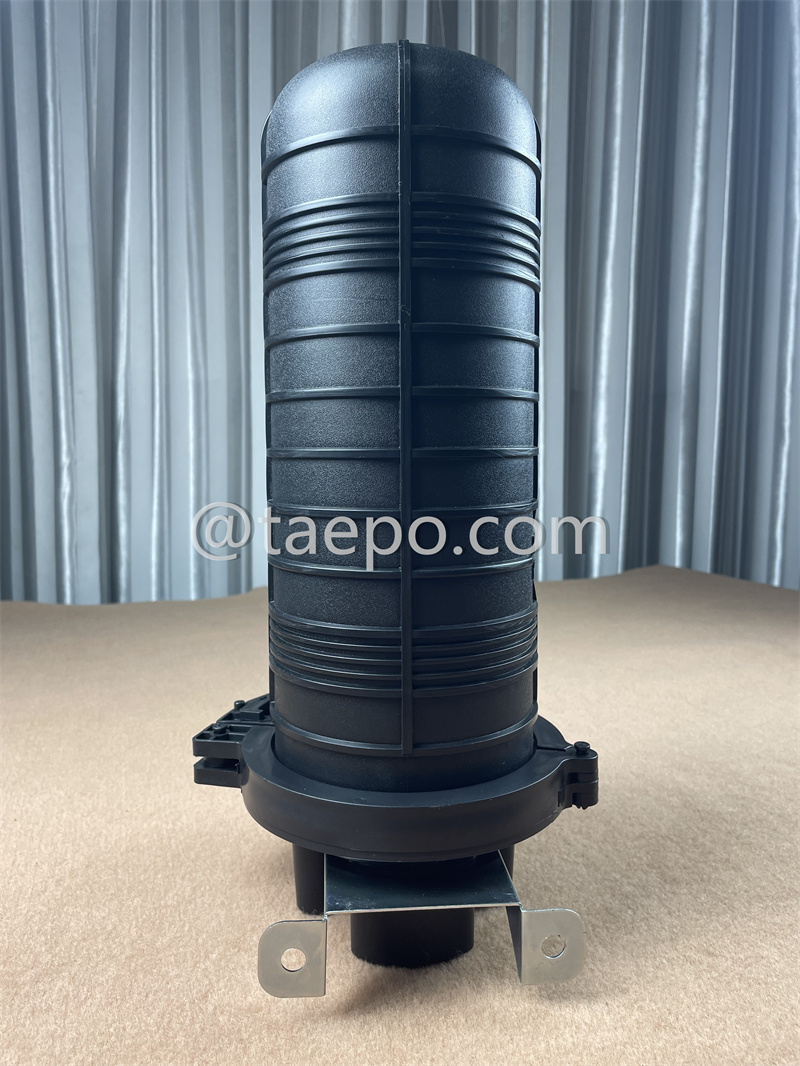

    ILLUSTRATION PICTURES

    PACKING PICTURES

   ORDER DATA
