What does Optical Power Meter do?


    DESCRIPTIONS

The handheld optical power meter (TP-3711-A) is a precision instrument used for testing and maintaining fiber optic communication networks. It measures the optical power in both single-mode and multi-mode fibers and is commonly used for verifying signal loss, link integrity, and continuity. Designed for field use, the device features a rugged casing and a compact form factor, making it suitable for on-site installation and maintenance tasks.

The meter supports a wide dynamic range and multiple wavelength calibrations (850, 980 1300, 1310, 1490, 1550, 1625 nm), enabling compatibility with various transmission systems including GPON, EPON, CATV, and long-haul telecom lines. It features selectable measurement units and can store and recall results for later analysis.

Equipped with a large backlit LCD, intuitive buttons, and auto-shutdown functionality, the meter is optimized for technician convenience and low power consumption. The universal optical connector (FC/SC/ST) interface allows for flexible testing without the need for multiple adapters. It is powered by standard AA batteries , ensuring portability and long field operation.

With high accuracy, fast response time, and rugged design, the optical power meter is an essential tool for fiber network commissioning, troubleshooting, and quality assurance. It complies with international standards such as CE, RoHS, and IEC 60825 for laser safety and optical testing reliability.

    MAIN FEATURES

• Wide Wavelength Range: Measures optical power across a range of wavelengths.
• High Accuracy: Delivers precise measurements for reliable results.

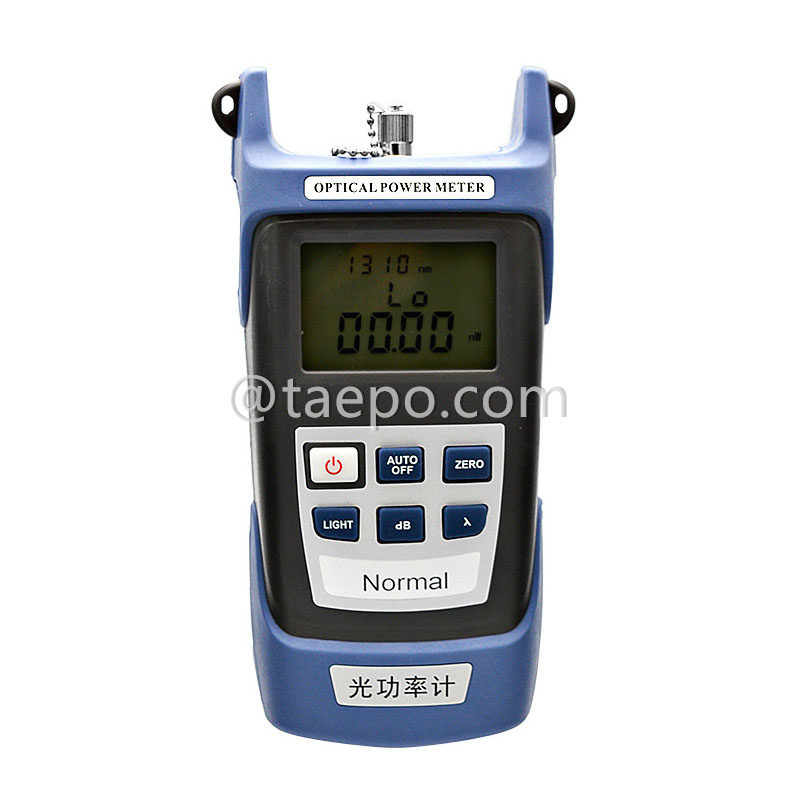

• Real-Time Display: LCD screen provides immediate feedback on power levels.
• Portable and Compact: Lightweight design for field use.
• Rugged Build: Impact-resistant casing for durability.
• Auto-Shutdown: Extends battery life by automatically turning off after inactivity.
• Broad Compatibility: Works with single-mode and multi-mode fibers.
• Easy Calibration: Simple calibration procedure for accurate measurements.
• Long Battery Life: Operates for extended periods without frequent battery changes.
• Backlight Display: Improves readability in dark environments.
• User-Friendly Interface: Intuitive button layout for quick operation.
• Fast Response Time: Quickly updates readings for efficient testing.

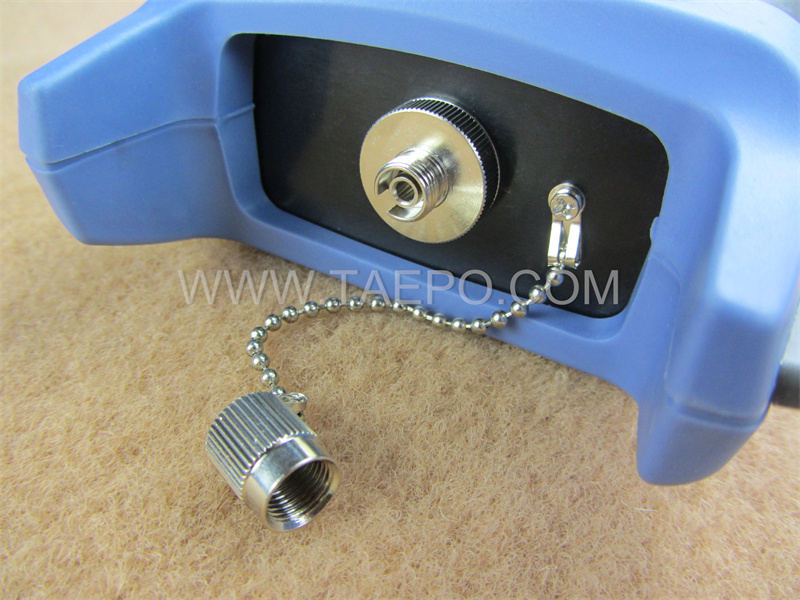

• Universal Connector Port: Compatible with SC, ST, FC connectors.
• Wide Temperature Range: Operates reliably across varied temperatures.
• Low Power Consumption: Conserves energy during prolonged use.
• Real-Time Display: LCD screen provides immediate feedback on power levels.
• Portable and Compact: Lightweight design for field use.
• Rugged Build: Impact-resistant casing for durability.
• Support linear indicators (mW) and non-linear indicators (dB) showing at the same time.
• Support auto power-off
• Support backlight ON/OFF
• Support self calibration by user himself
• Support SC, FC interface, ST interface (optional)
• Charging unplugged working time 48 hours (optional)
• Support portable battery / computer power supply (optional)
• Support  wavelength memory function
• Support optical fiber work identification
• Support red constant and flashing (1 to 9 for the light power meter and integration machine series products, a total of characteristics, Features of 10  integration machine series.)

    SCHEMATIC DIAGRAMS

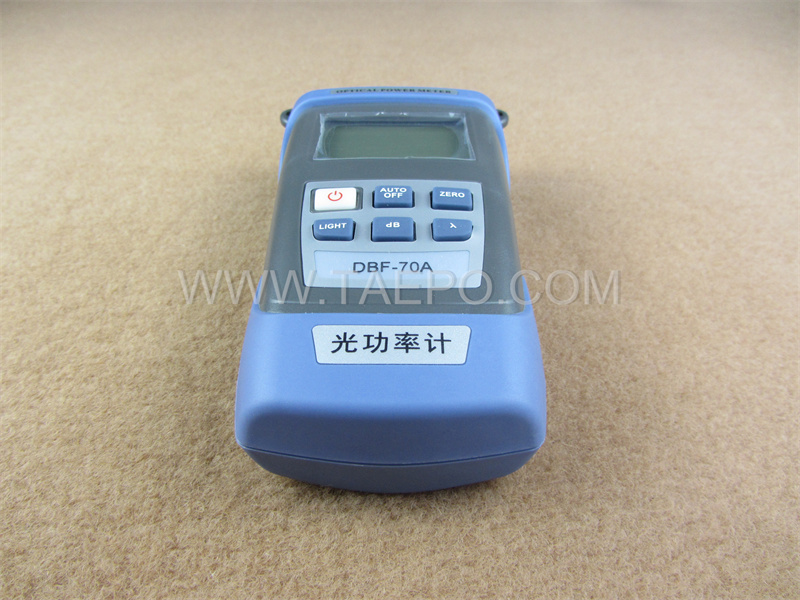

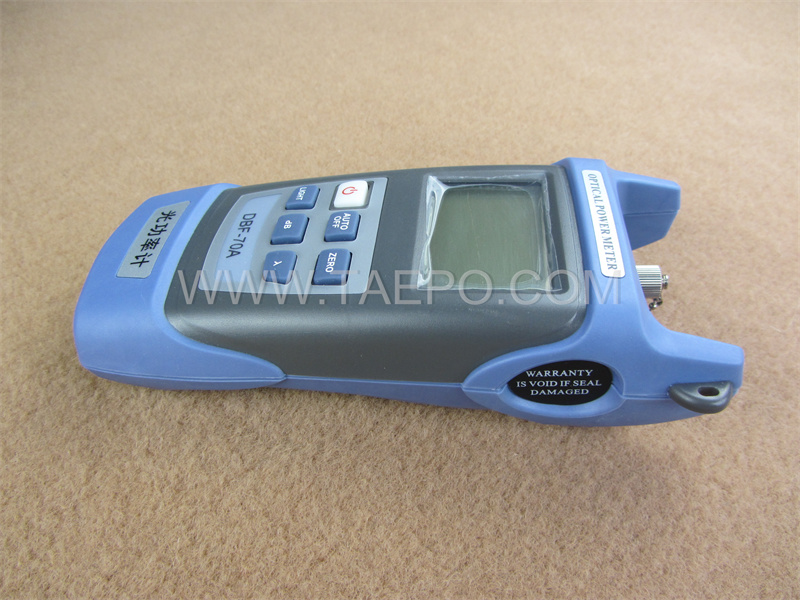

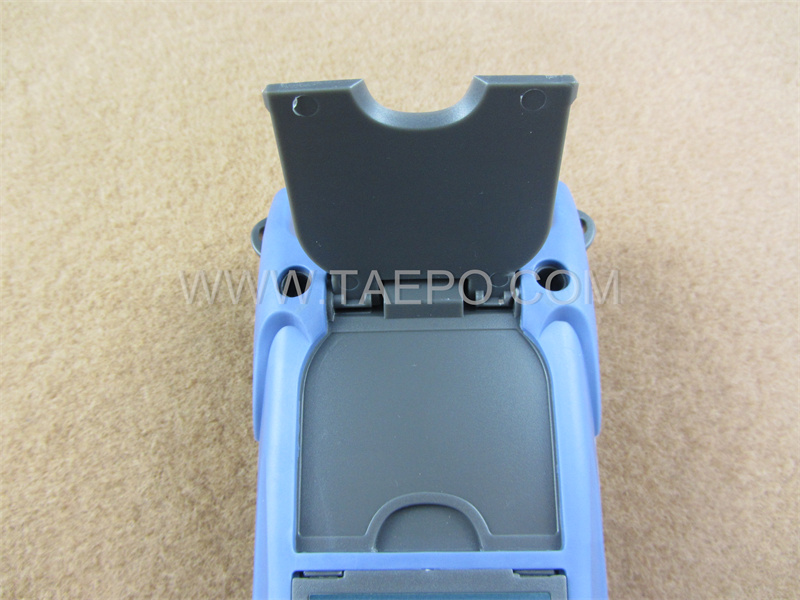

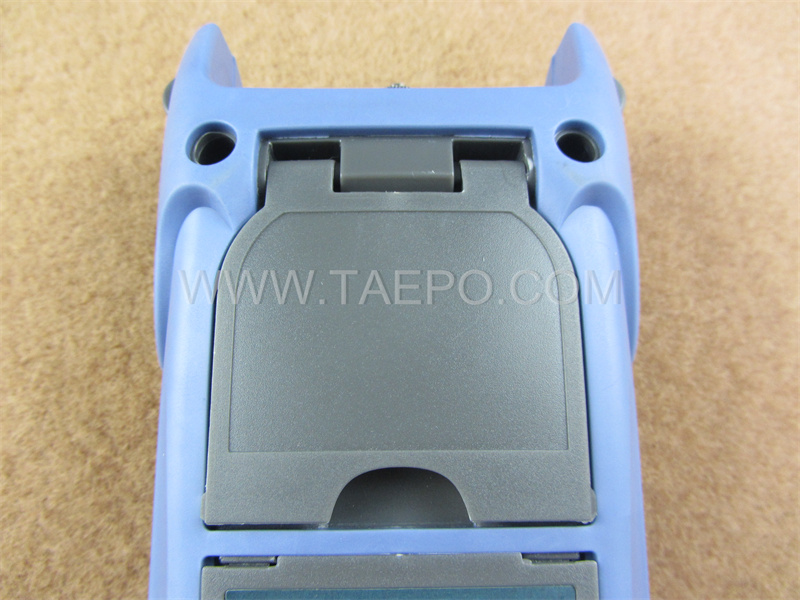

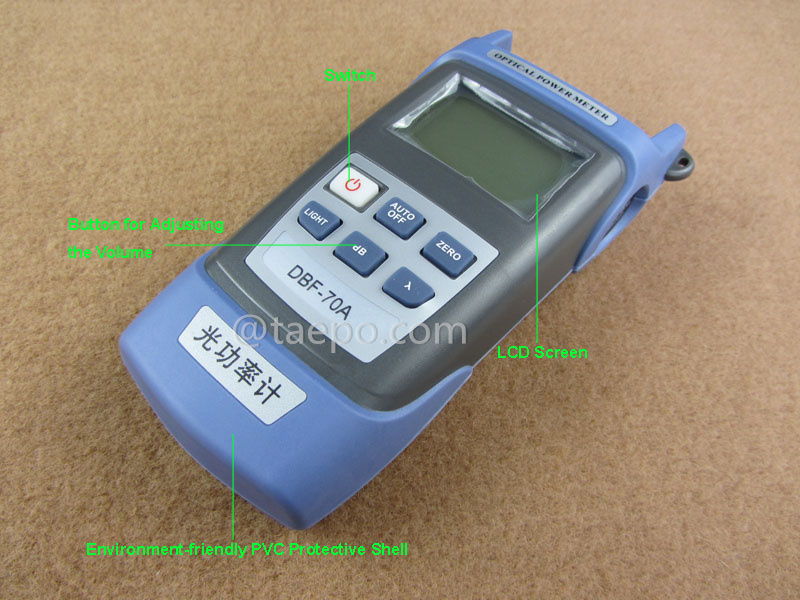

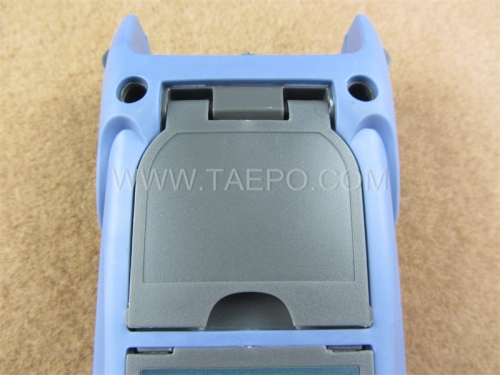

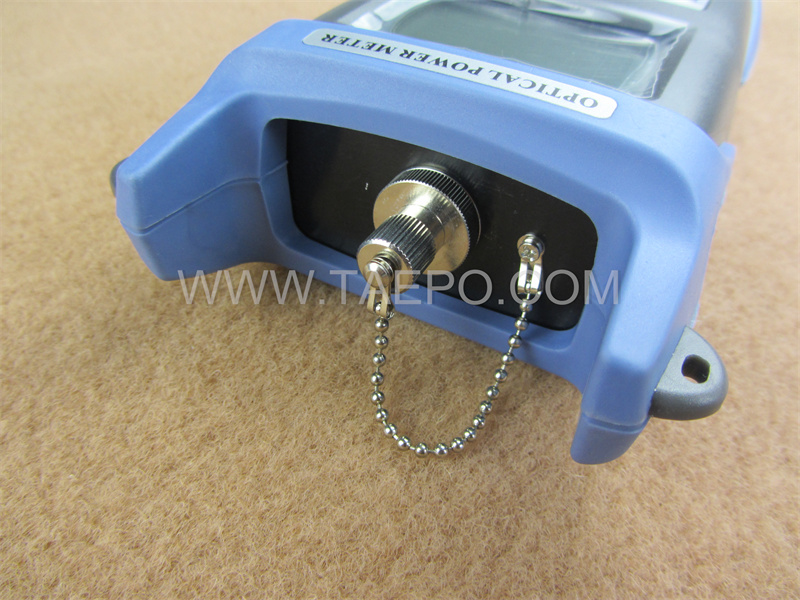

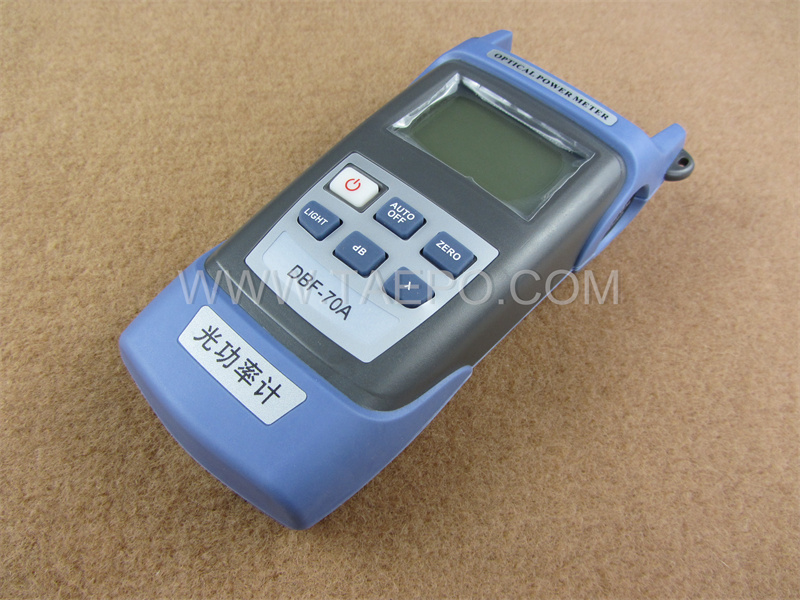

    ILLUSTRATION PICTURES

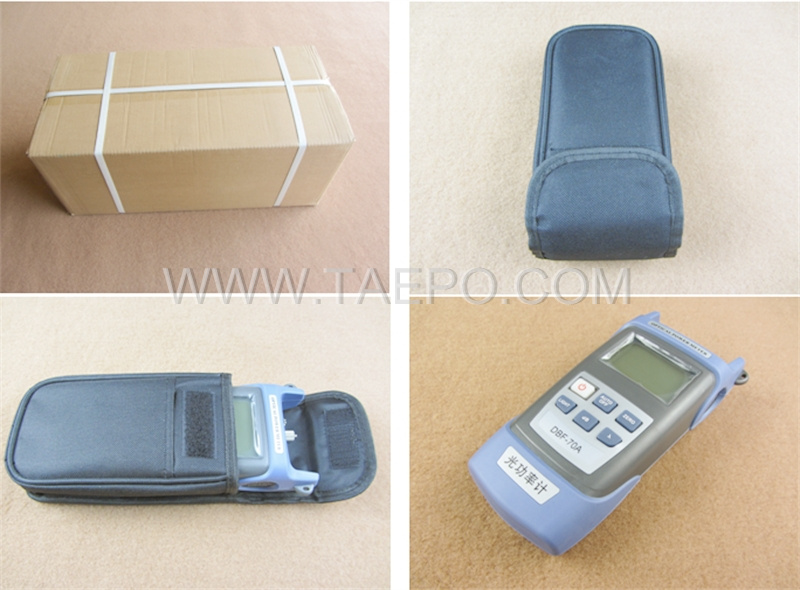

    PACKING PICTURES

   ORDER DATA
